Product Introduction:
1. According to the model, high-strength reinforcement with a diameter of 12-20 mm can be processed to support two-way bending.
2. With an independent cutting function, one reinforcement can complete multiple graphics continuously, avoiding repeated feeding.
3. It uses a high-end servo motor with super power, intelligent fault identification and stable, reliable performance.
4. Intelligent bending speed regulation control and automatic bending speed control ensure that the finished product will not deform due to inertial swing when completing the stirrup.
It is equipped with a standard drawing library with an automatic storage and call function.

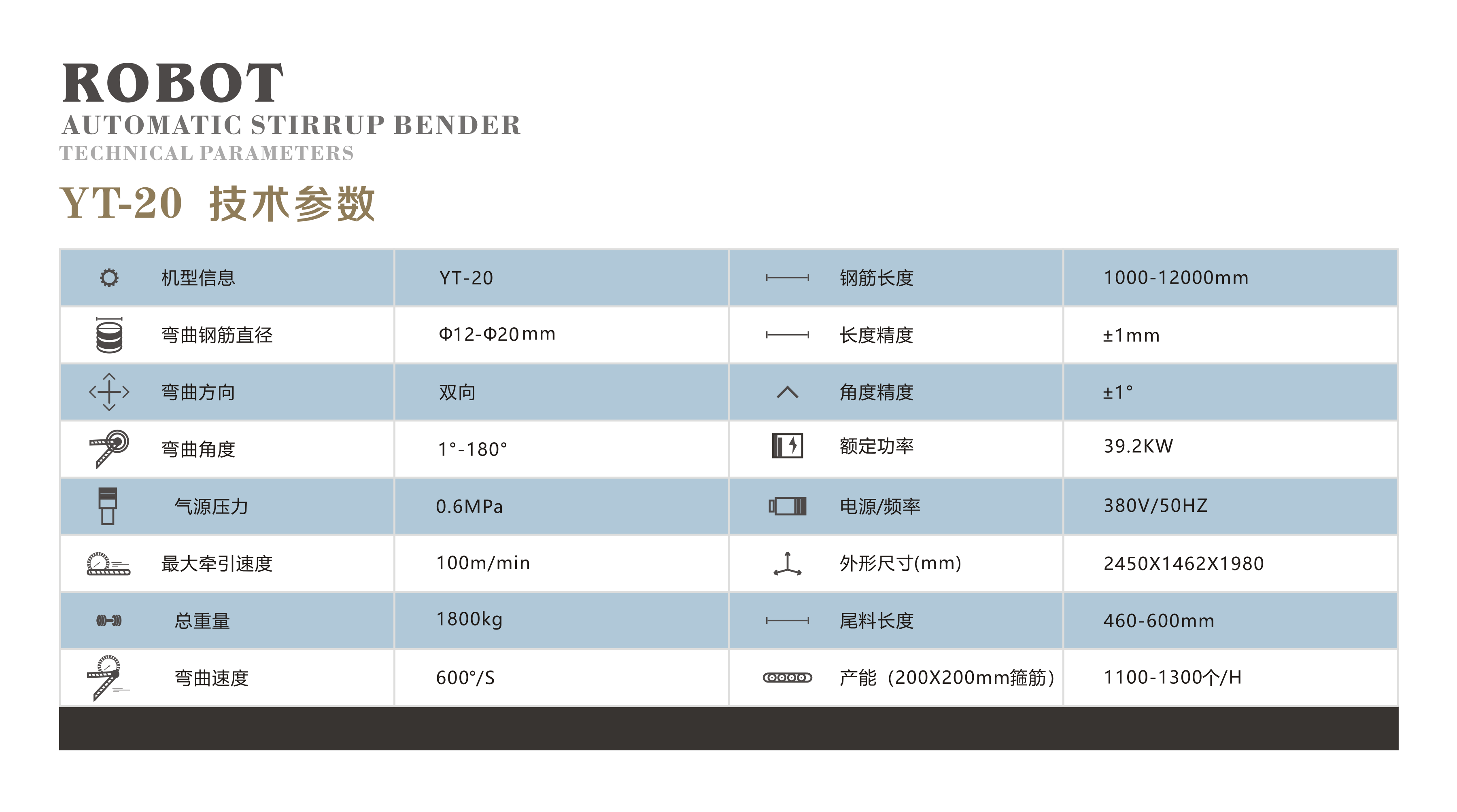

Product Parameter
| Rebar Stirrup Bending Machine YT-20 |
| Steel Bar Length | 1-120M | Tailing Rebar Lenght | 460-600MM |
| Single Wire | 12-20MM | Production Capacity | 1100-1300PCS/Hour |
| Bending Speed | 600°/s | Voltage | 380V/50HZ |
| Bending Angle | 1-180° | Air Compressure | 0.6Mpa |
| Max Traction Speed | 100M/MIN | Bending Direction | Bi-direction |
| Length Accuracy | ±1MM | Machine Dimension | 2450*1462*1980MM |
| Angle Accuracy | ±1° | Rated Power | 39.2KW |
| Main Machine Weight | 1800KG | | |
Product Details
FAQ
1. Is your company manufacturing or trading company?
We are a manufacturer and we have about 12 years experience in steel bar processing equipment field.
2. Can you help us contact the shipping agent in your loading port?
Of course,we have own best shipping forwarder who always provide the best services&price to us.
3. What kind of package you will provide?
Regarding cnc stirrup bender,We will wrapping film on the machine,as machine is too big,but don’t worry,its won’t break.
4. What's the difference between YT-12 and YT-12S
YT-12S have reverse feeding function,can make plate stirrups.
Factory Show
