Product Introduction
1.The laser emitter is capable of automatic control of both flat surfaces and two-way slopes. It features an imported servo drive system that ensures smooth running, precise timing and strong overload ability.
2. The dynamic brand/Topcon laser system is characterised by its high working precision and reliability.
3. Hybrid drives provide greater flexibility at a competitive price point.
4. Utilise closed-loop control technology, a state-of-the-art integrated hydraulic system, precision laser technology, microcomputer automatic control, and other advanced features to optimise efficiency and precision.
5. Dynamic has successfully developed a state-of-the-art, high-precision automatic control system, delivering outstanding results.
6. Control panel: Designed for simplicity and ease of use.

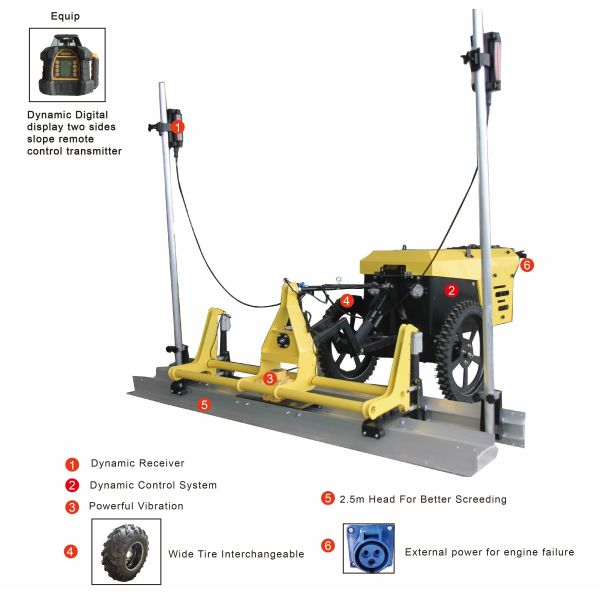

The product is a leveling head made from an aluminium-magnesium alloy. It is durable and standard size is 2.5 metres, with an optional 3-metre size available.
8. High-frequency vibration motor.
This motor is capable of producing a high pulping effect.
Video
Product Parameter
| Laser Screed Machine JT-2500 |
| Flattening Head Width | 2500MM |
| Paving Thickness | 30-300MM |
| Walking Speed | 0-6KM/H |
| Walking Drive | Servo Motor Drive |
| Exciting Force | 1000N |
| Engine | Honda GP200 |
| Power | 5.5HP |
| Weight | 295KG |
| Dimension | 2750*2950*2050MM |
| Laser System | Two Side Slope Remote Control Transmitter |
| Control Mode | Laser Scanning+High Precision Servo Push Rod |
Product Details
FAQ:
1. What is a laser screed?
A laser concrete levelling machine is primarily used for ground levelling and road construction. It uses cutting-edge laser control technology, computer control technology, sensor technology, servo drive technology and many other sophisticated, highly automated technologies that are easy to use, require few construction workers, are affordable and efficient, and provide a high-quality finish.
2. Application:
Any type of concrete floor, including those with reinforcing mats.
Construction conditions:
1) Slump in concrete: 90–150 mm
2) Base roughness ≤100 mm
3. Performance:
(1) Ground flatness: ≤±4 mm/2 m
(2) Ground elevation error: diameter
Range: ≤±7 mm/100 m
(3) Maximum construction radius: ≤200 m
(4) Construction area per hour: 200 m²/h to 350 m²/h.
